Description

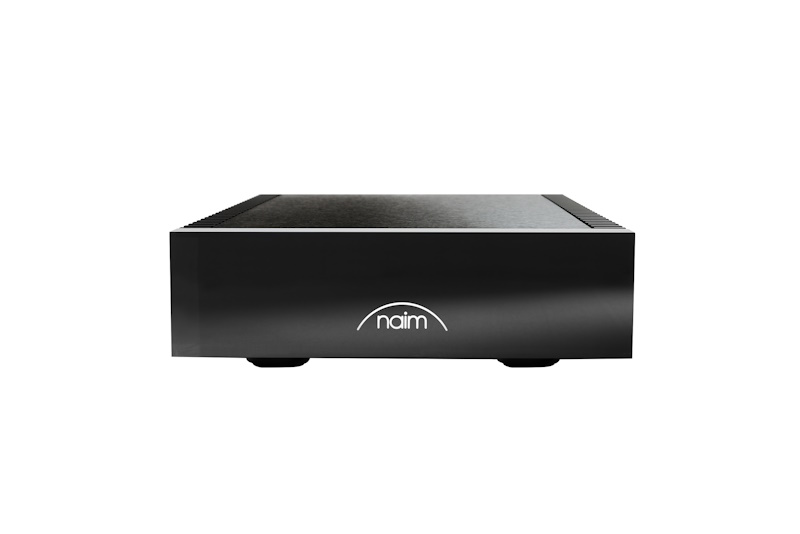

The Naim NVC TT Phono Stage uses the highest quality components to ensure you get the best out of your turntable, no matter what cartridge you use.
It has Moving Magnet and Moving Coil circuits and the gain and cartridge loading is adjustable to match your system:
Specifications
MM gain: 42dB
MC (low & high gain): 61dB low gain and 67dB high gain (switchable)
Max output signal: 8 Vrms
Crosstalk – Phono: MM: >75dB
MM headroom: 22dB ref 5mV input
MC headroom: 23dB ref 0.5mV input low; 17dB ref 0.5mV high setting
Input overload: 8.2 V RMS
MM loading: 47kΩ and 100pF
MC (low & high gain) loading: 16 selectable resistive values: 1 000 Ω, 600 Ω, 430 Ω, 330 Ω, 250 Ω, 215 Ω, 185 Ω,165 Ω,150 Ω, 140 Ω, 125 Ω, 115 Ω, 105 Ω, 100 Ω, 90 Ω, 85 Ω and 16 selectable capacitive values: 100 pF, 400 pF, 700 pF, 1000 pF, 1300 pF, 1600 pF, 1900 pF, 2200 pF, 2500 pF, 2700 pF, 3100 pF, 3400 pF, 3700 pF, 4000 pF, 4300 pF, 4600 pF
RIAA Accuracy: MM: +/-0.1dB
Dimensions (HxWxD): 7cm x 21.4cm x 31.7cm (2.75″ x 8.37″ x 12.5″)
Weight: 3.4 kg / 7.5 lb
