Innuos Zen Mini Mk3 - server/streamer

AUDIO OUTPUTS

Digital Output

• USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA

• Coaxial S/PDIF up to 24bit/192KHz

• Optical S/PDIF up to 24bit/192KHz

Analogue Output

• RCA Analogue up to 24bit/192KHz

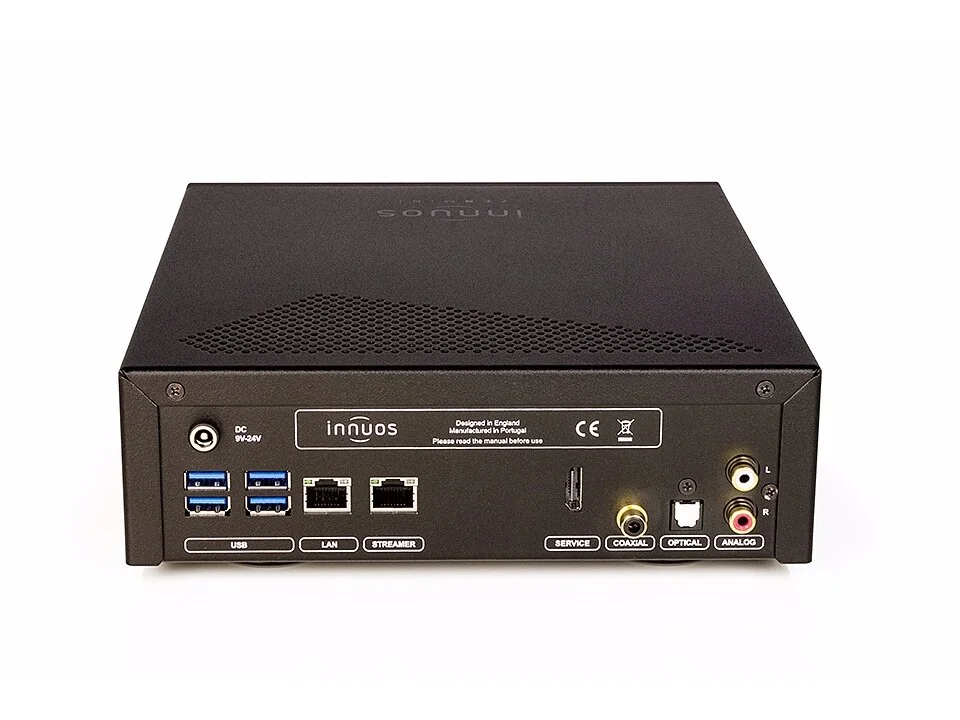

CONNECTIVITY

• Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet

• USB4x USB 3.0

FORMATS

CD Formats: Red Book

Disc Compatibility: CD, CD-R, CD-RW

Audio format for stored CDs: FLAC (zero compression), WAV

Audio Formats Supported for streaming and playing: WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs

SAMPLE RATES

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs

Bit Depths: 16bit, 24bit, 32bit

USER CONTROL INTERFACES

Web Interface: Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers

Mobile: App for iPhone/iPad, Android and Windows 10

HARDWARE

CD/DVD drive: TEAC Slot-loading drive

Hard Drive:1TB WD Red HDD

CPU: Intel Quad Core N4200

Memory: 4GB DDR3

STREAMING AND CD STORAGE

UPnP/DLNA Integrated UPnP Server

Streaming ServicesQobuz, Spotify Connect, Tidal, Internet Radio

Roon Compatibility Roon Core and Roon Bridge

Average CD Storage Time5 minutes

CD MetadataFreeDB, MusicBrainz, Discogs, GD3

Compatible Music SystemsSonos Multi-room Wireless Music SystemDLNA/UPnP compatible streamersUSB DACs complying to USB Audio Class 2USB DACs supporting DSD over DoP protocolSelected USB DACs supporting Native DSD

REQUIREMENTS

Network

• Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates

• Network router with at least one available ethernet port

• Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal

Recommended App (USB Connection Only): iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)

POWER

Mains Supply: Low ripple Power Adapter, 12V 5A, CEC Level V efficiency

Power Consumption: 10W when idle, 15W peak

PHYSICAL

Dimensions: 74 x 214 x 240 mm (H x W x D)

Weight: 4.5 Kg
